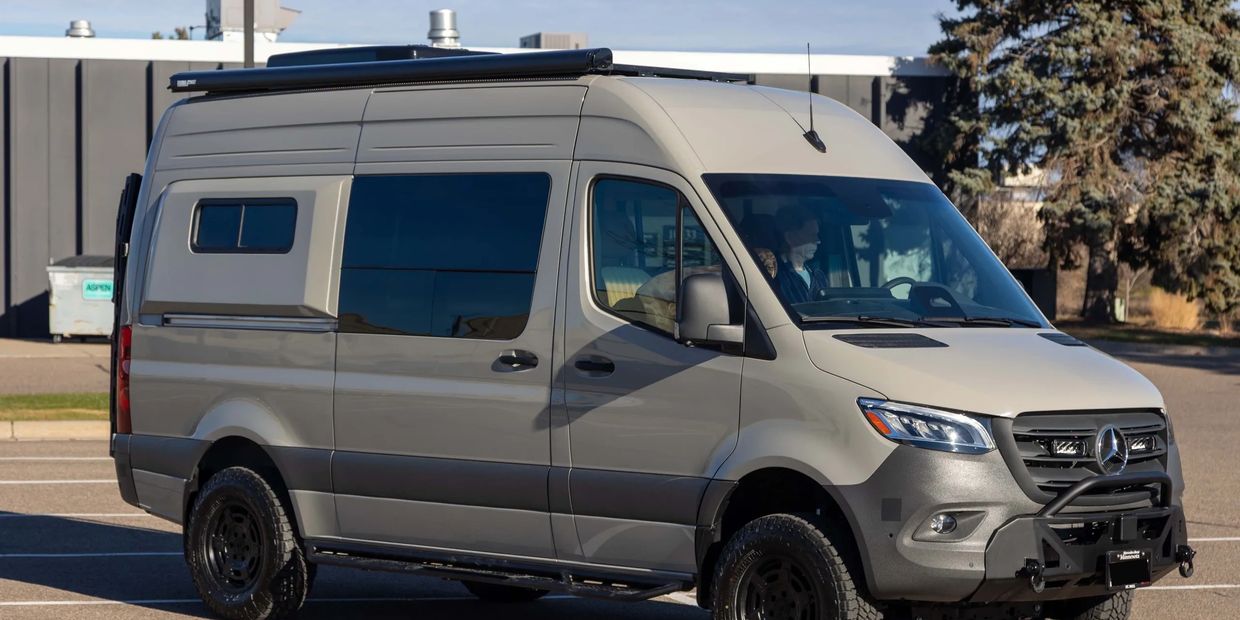

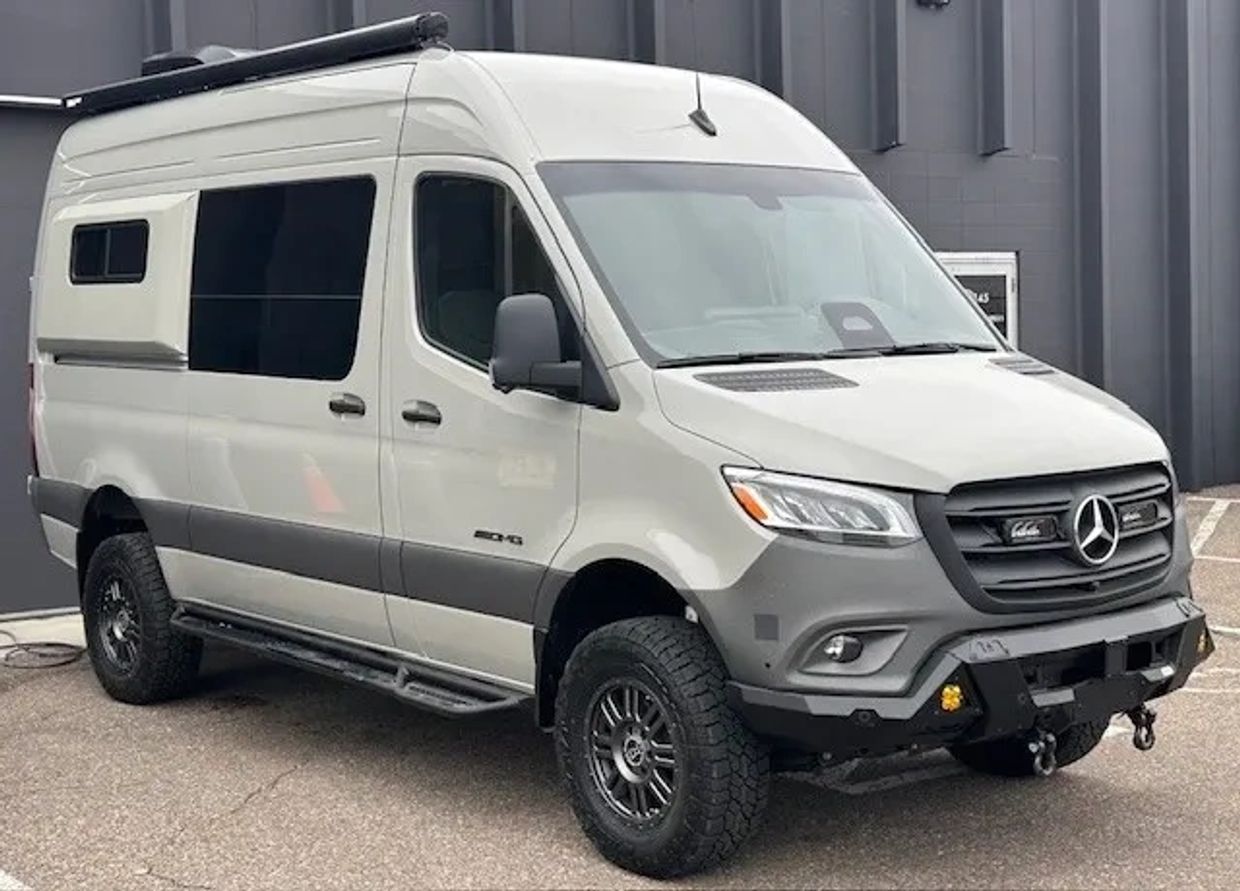

The Nomad — Sprinter 144 AWD Camper Van

Seating & Sleeping

• 40″ sofa/bed located behind the driver’s seat
• Front seat recovers match sofa
• Rear bed with hinged center section
• Custom hydro dipped dash parts and tables

Climate Control

• MaxxFan 7500 roof vent with smoke lid & remote control
• Gree 120V air conditioning system (Premier Products)
• Webasto Evo 40 diesel heater with SmarTemp Bluetooth thermostat

Electrical Power

• Victron MultiPlus 3000 W inverter/charger (120V VE.Bus)
• Victron digital multi remote control
• Victron BMV 712 battery monitor with Bluetooth
• Epoch 460 Ah LiFePO₄ self-heating battery with Bluetooth monitoring
• 2 Victron Orion XS 50 A DC-DC chargers
• Victron SmartSolar MPPT 100/30 solar controller
• 200 watts of roof-mounted solar panels
• 30-amp shore power inlet
• 120-volt outlets with USB and USBc charging ports

Lighting Package

• 2 LED reading lights with integrated USB ports
• 6 dimmable warm-light ceiling puck lights in the living area
• 4 dimmable warm-light puck lights in the bed area
• Dimmable under-counter puck light
• Dimmable LED accent and neon rope lighting in crown molding

Plumbing & Water Systems

• Laveo dry-flush electric toilet (battery-powered, slide-out design)
• 20-gallon fresh water
• 10-gallon gray water tank WITH DUMP SWITCH
• Kitchen sink with pull-down faucet
• Shower faucet with handheld sprayer at rear doors
• Bosch 4-gallon water heater

Windows & Privacy

• Premier Products vented windows behind driver and passenger seats
• 2 bunk windows in the sleeping area
• Framed blackout honeycomb blinds
• Easy to install front windshield/cab privacy curtain

Cabinetry & Surfaces

• Corian countertops
• Over-cab storage area
• Two drawers under the 40″ sofa/bed
• Single Lagun table mount plus two flip-up tabletops

Walls, Ceiling, Insulation & Flooring

• Upper walls wrapped in premium fabric
• Tongue & groove ceiling with satin lacquer finish
• Kilmat sound deadening on all surfaces
• 3M Thinsulate insulation in walls, ceiling, and rear doors
• Double-bubble foil insulation (two layers) on the floor and front doors
• Infinity Luxury Woven Flooring

Appliances

• Single-burner induction cooktop
• Hisense 4.4 cu ft counter-depth mini fridge/freezer (ENERGY STAR)
• RecPro microwave

Exterior Upgrades

• Fiamma F80s awning
• 17” Black Rhino wheels
• Falken WildPeak AT4 265/70 17” tires
• Vanspeed side steps for easy entry
• Flatline Van Co front bumper for added protection with fog lights and shackles
• Main Line Overland Triple-R grille light kit
• Vanspeed Sprinter Capsules
